BattenLok® HS Panels

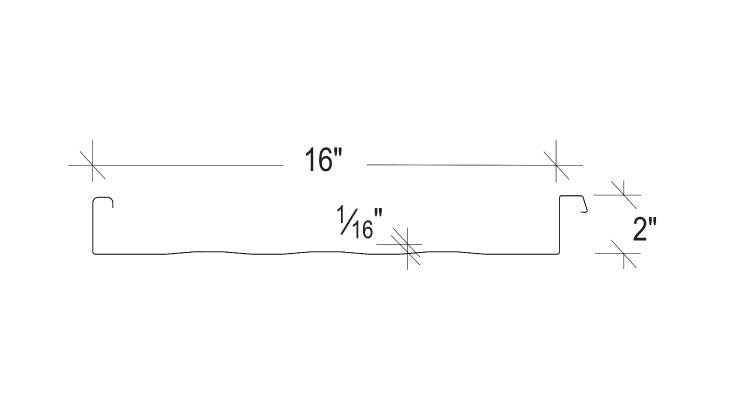

BattenLok® HS is a mechanically field-seamed, high strength structural standing seam roof system. The BattenLok® HS panels have a two-inch tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support.


Applications: Panel Systems, Roof Systems, Standing Seam Roof Systems

Coverage Width: 12", 16"

Minimum Slope: ½:12

Panel Attachment: Concealed Fastening System, Low, High (fixed or floating), Utility (no insulation clearance)

Gauge: 24 (standard); 22 (optional)

Finishes: Smooth or Embossed; with Striations or Striations with Pencil Ribs (16" only)

Coatings: Galvalume Plus® , Signature® 200, Signature® 300, Signature® 300 Metallic

Color Options:
