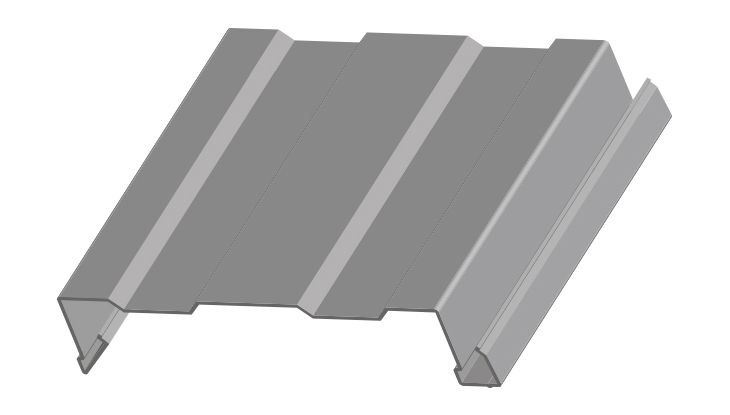

NuWall® panel

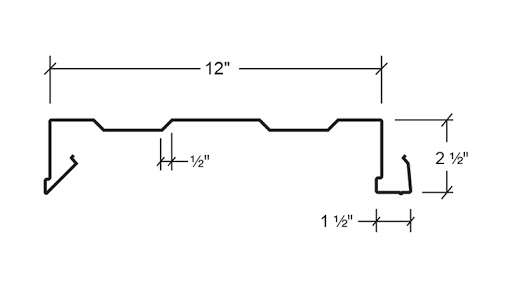

The NuWall® panel creates a clean, uninterrupted wall on a building. NuWall® offers many coating options and comes in both smooth and embossed finishes. The NuWall® system is based on a 12-inch module. This means that when using NuWall® over existing metal panels, the existing panel ribs must be 6 inches or 12 inches on center.


Applications: Panel Systems, Concealed Fastening Wall Panels, Wall Panels

Coverage Width: 12"

Minimum Slope: N/A

Panel Attachment: Concealed Fastening System

Gauge: 24 (standard); 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Rib Spacing: N/A

Rib Height: N/A

Length: 5'-0" to 40'-0"

Color Options:
