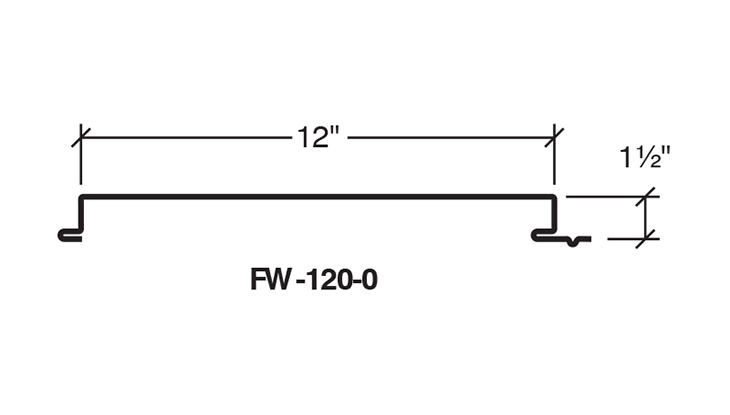

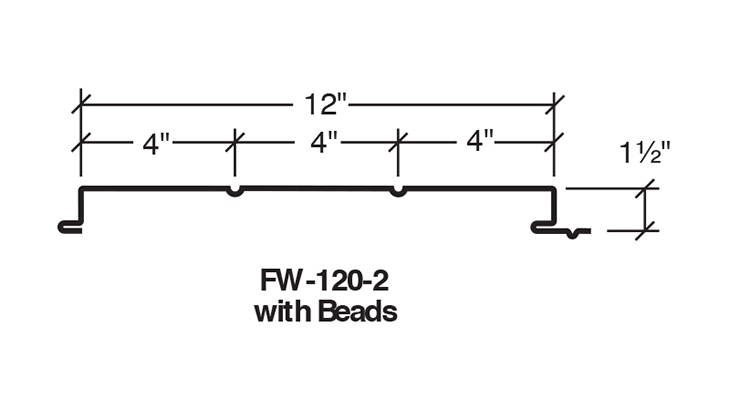

The FW-120 panel is a concealed-fastened wall and liner panel that provides a flat appearance. FW-120 is commonly used for architectural, commercial and industrial markets. The heavy gauge offering provides for large spanning capabilities, particularly in composite wall applications.


Applications: Panel Systems, Wall Systems, Concealed Fastening Panels

Coverage Width: 12"

Panel Attachment: Concealed Fastening System,FW-120 Clip (standard); Without FW-120 Clip (optional)

Gauge: 24 (standard); 22, 20 (optional)- FW-120 Clip not available for 20-gauge panels

Finishes: Smooth (standard); Embossed (optional)

Coatings: Signature® 300

Length: 5'-0" to 30'-0"

Color Options:
