Double-Lok® Panels

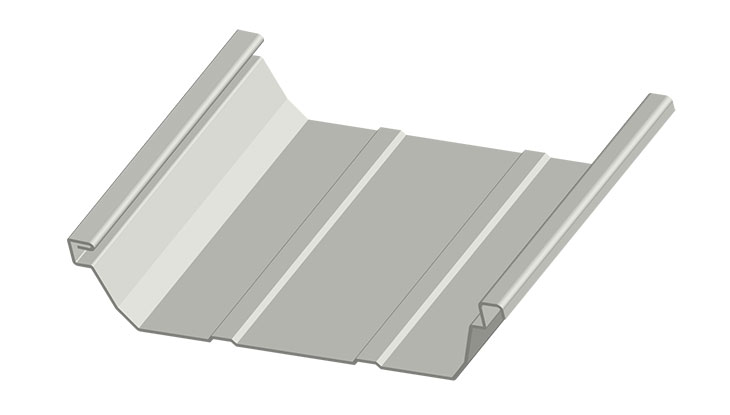

The Double-Lok® roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are available in 18-inch and 24-inch widths and require a minimum slope of ¼:12. Double-Lok® panels are ideal for industrial, commercial, and architectural applications.


Applications: Panel Systems, Roof Systems, Standing Seam Roof Systems

Coverage Width: 18", 24"

Minimum Slope: ¼:12

Panel Attachment: Concealed Fastening System, Low, High, and a 2" Stand-off Clip

Gauge: 22, 24

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus® , Signature® 200, Signature® 300, Signature® 300 Metallic

Color Options:
