Striated Wall Panel

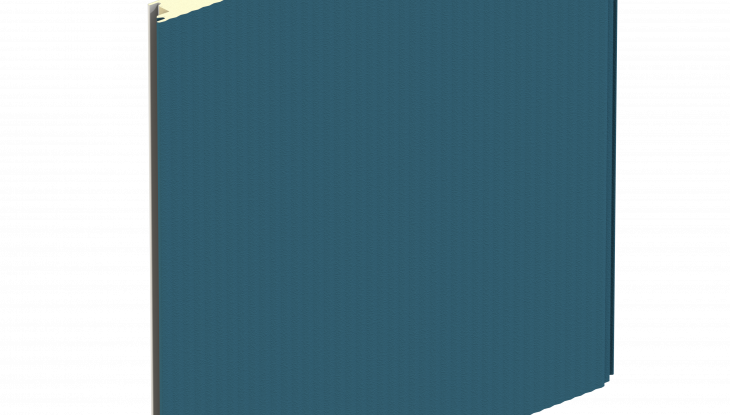

The exterior skin of the Striated panel is profiled with minor striations, giving it a flat look, and providing a linear appearance while blending with the panel side joints. This panel is an excellent alternative to typical flat wall panels. The interior skin has a stucco-embossed light Mesa profile.


Applications: Panel Systems, Insulated Wall Panel Systems, Insulated Metal Panel Systems

Coverage Width: 24", 30", 36", 42"

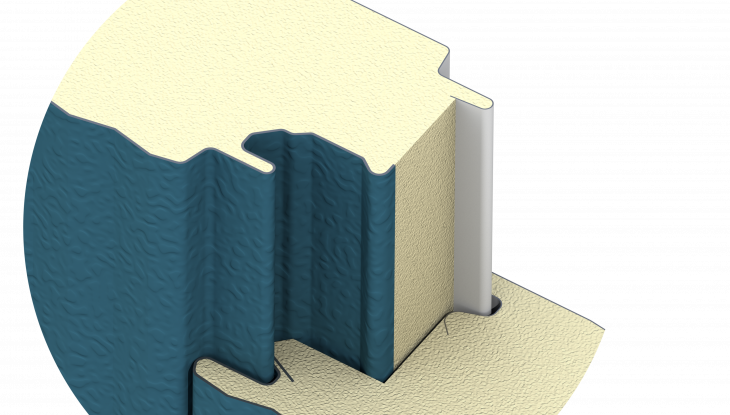

Panel Attachment: Concealed Fastening System

Gauge: Exterior: 24, 22 | Interior: 26 (standard); 24, 22 (optional)

Finishes: Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. Optional smooth-unembossed finish Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.

Coatings: Signature® 200, Signature® 300, Signature® 300 Metallic, Applied Finishes

Length: 8'-0" to 32'-0" horizontal embossed 8'-0" to 16'-0" horizontal unembossed 8'-0" to 40'-0" for 24", 30" and 36" vertical embossed 8'-0" to 32'-0" for 42" vertical embossed 8'-0" to 16'-0" vertical unembossed

Thickness: 2", 2½", 2 ¾"*, 3", 4"

Color Options:
