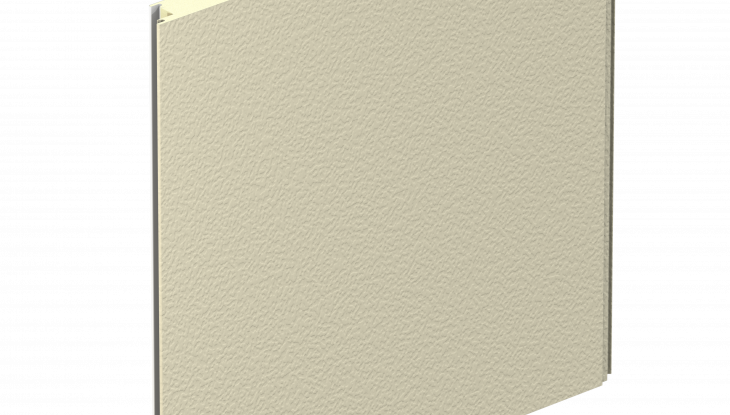

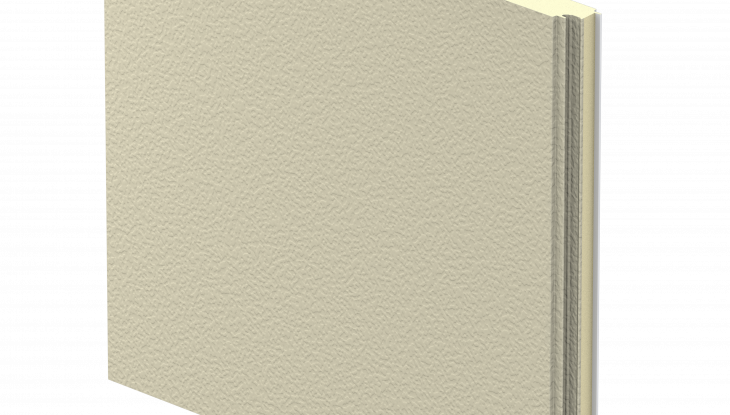

The Santa Fe® exterior skin has a flat exterior profile with an Aztec-embossed pattern resembling old-world hand plaster. The interior skin employs a stucco-embossed light Mesa profile. Note: Not intended for exterior walls on cold storage buildings.
Applications: Panel Systems, Insulated Wall Panel Systems, Insulated Metal Panel Systems
Coverage Width: 24", 30", 36", 42"

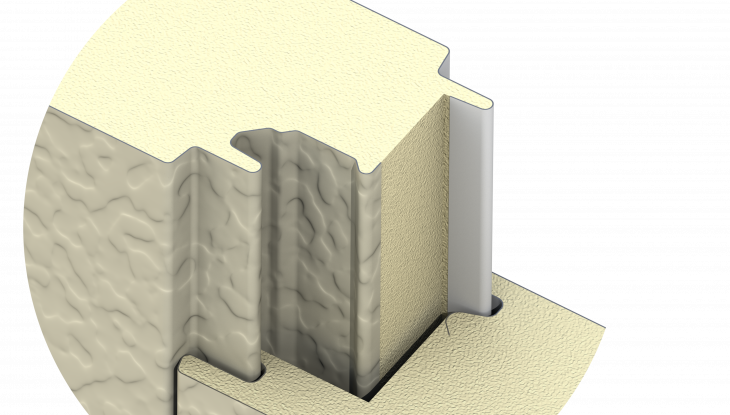

Panel Attachment: Concealed Fastening System
Gauge: Exterior: 24, 22 | Interior: 26 (standard); 24, 22 (optional)
Finishes: Exterior Face: Heavy Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.
Coatings: Signature® 200, Signature® 300, Signature® 300 Metallic, Applied Finishes
Length: 8'-0" to 32'-0" Santa Fe horizontal unembossed 8'-0" to 40'-0" Santa Fe vertical embossed
Thickness: 2", 2½", 2 ¾"*, 3", 4"
