HPCI Barrier™

The HPCI™ Barrier insulated metal panel is an air, water, thermal and vapor barrier panel that can be used behind any type of façade. This back-up panel may be installed in a horizontal or vertical orientation completely outside the structural supports. There are no thermal bridges to reduce the energy efficiency of the wall. HPCI Barrier™ is quick and easy to install and provides an economical solution to conventional air, water, thermal and vapor control without sacrificing thermal efficiency. This panel must be separated from the interior of the building by an approved thermal barrier of .5" (12.7 mm) gypsum wallboard to meet IBC requirements.

Features

Applications: Panel Systems, Insulated Wall Panel Systems, Insulated Metal Panel Systems

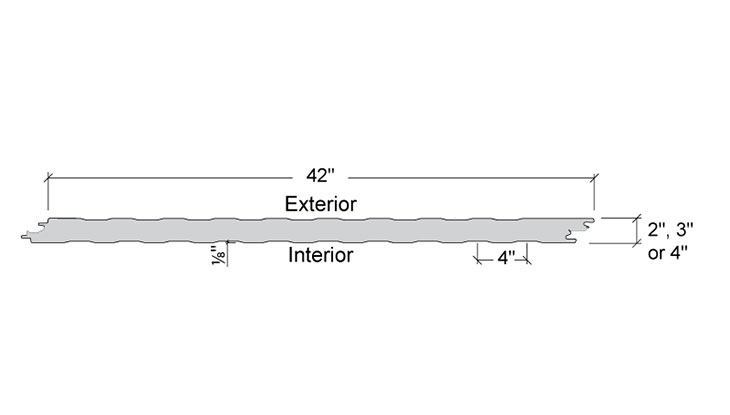

Coverage Width: 42″

Panel Attachment: Tongue-and-Groove, Concealed Fastener

Gauge: 26"

Finishes: Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in min. 26 Ga. Interior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in min. 26 Ga.

Coatings: Signature® 200 Igloo White (straight polyester)

Length: 8'-0" to 32'-0" horizontal 8'-0" to 52'-0" vertical

Thickness: 2", 2½", 3", 4", 5" and 6"

Color Options:
