Architectural Flat

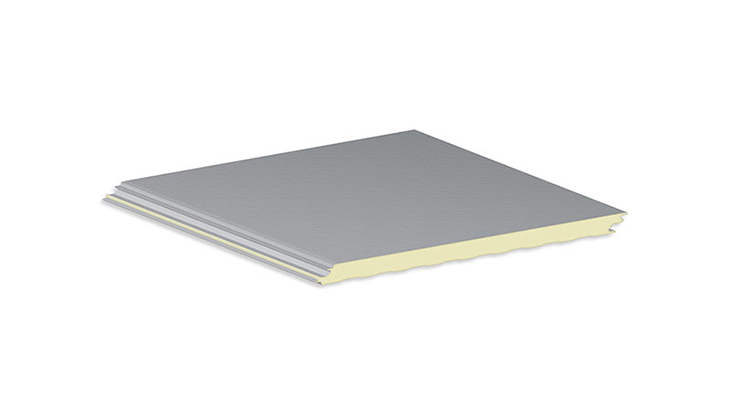

The CF Architectural wall panel employs a flat appearance providing a monolithic look that is great for high-profile architectural applications. The panel allows designers to mix multiple panel widths and colors on the same wall. It also allows flexibility for continuous corners along with a complete line of aluminum extrusions and accessories to complete the wall system. When desired, these panels can also be mixed with vertical or horizontal panels to achieve almost any look a design requires and can be used in vertical or horizontal applications. Note: Not intended for exterior walls on cold storage buildings.


Applications: Panel Systems, Insulated Wall Panel Systems, Insulated Metal Panel Systems

Coverage Width: 24", 30", 36"

Panel Attachment: Concealed Fastening System

Gauge: Exterior: 22 | Interior: 26 (standard); 24, 22 (optional)

Finishes: Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 22 Ga. Optional smooth unembossed finish. Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.

Coatings: Signature® 200, Signature® 300, Signature® 300 Metallic, Applied Finishes, Igloo White

Length: 8'-0" to 32'-0" for embossed 8'-0" to 16'-0" for unembossed

Thickness: 2", 2½", 3" (4" available for vertical)

Color Options:
