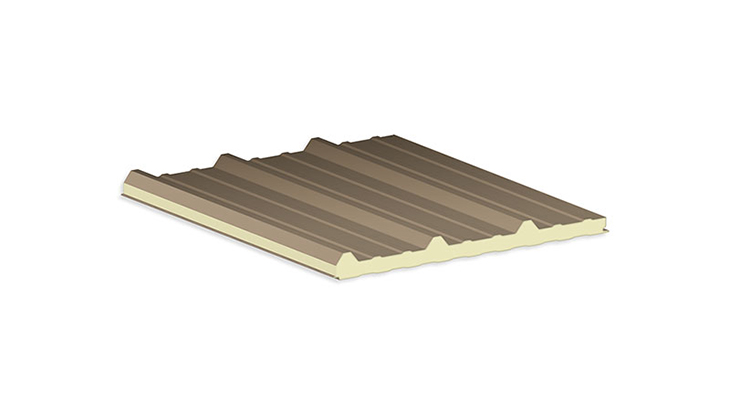

The versatility of the LS-36™ panel offers a multitude of design options and can be utilized for roof or wall applications. The standard exterior skin is smooth but can be embossed if requested, while the interior skin is roll-formed with our standard stucco-embossed Mesa profile.


Applications: Panel Systems, Wall Systems, Roof Systems, Insulated Metal Panel Systems, Insulated Roof Panel Systems, Insulated Wall Panel Systems

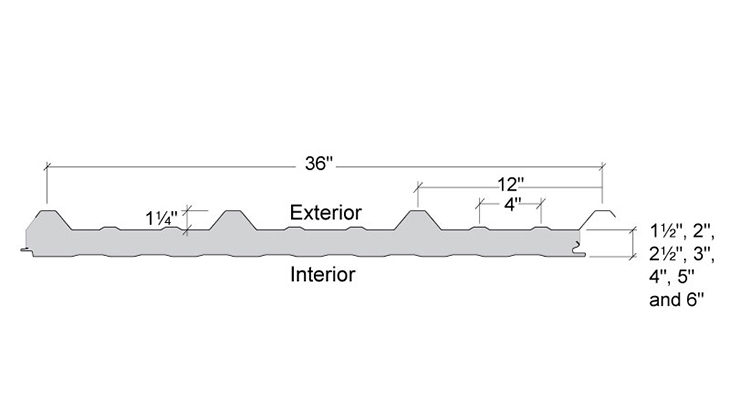

Coverage Width: 36"

Panel Attachment: Exposed Fastening System

Gauge: Exterior: 26, 24, 22 | Interior: 26, 24, 22

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus® , Signature® 200, Signature® 300, Signature® 300 Metallic, Applied Finishes (wall application only)

Length: 8'-0" to 50'-0"

Thickness: 1½", 2", 2½", 3", 4", 5", 6"

Color Options:
